Cylinder Head Replacement Cost UK: Prices & Repair Options

October 23, 2026

Compare Cylinder Head Replacement Quotes, Understand Head Gasket Repair Costs and Choose Between Skimming, a Reconditioned Head and a New Cylinder Head

How much does a used engine replacement cost in the UK? This guide uses an indicative budget of £1,500–£5,000+ for full head replacement and £500–£2,000 for head gasket work. These are planning ranges, not verified national averages or fixed quotes. Your engine code, damage, parts choice and local labour rate determine the final cylinder head replacement cost UK. A gasket repair replaces the seal; a full head replacement replaces the casting.

• Head gasket only: £500–£2,000
• Full cylinder head replacement: £1,500–£5,000+
• Reconditioned head: £400–£1,200 · Labour: £500–£1,200
• Skim and pressure test: £150–£300 combined
• Repair route: consider skimming only if inspection and manufacturer limits permit; compare recondition or new heads when replacement is required.

Compare cylinder head replacement quotes for your registration, engine code and postcode. Request an itemized price for diagnosis, parts, machining, fitting and VAT before authorizing work. If diagnosis reveals wider engine damage, compare replacement engine supply and fit quotes as a separate option.

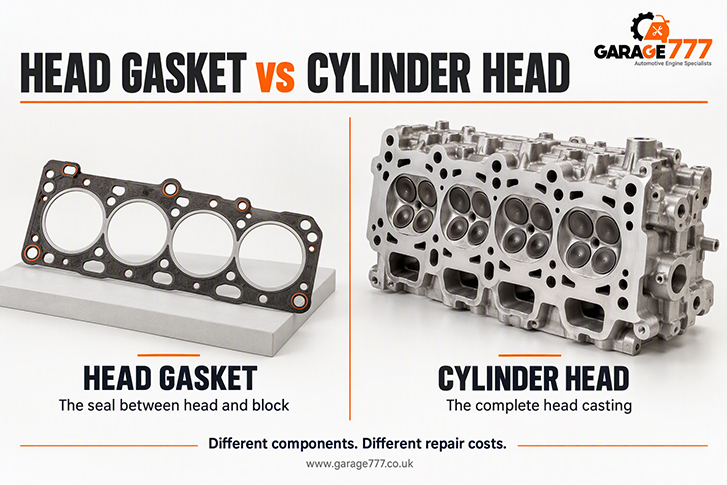

Head Gasket vs Cylinder Head Replacement: What Is the Difference?

This is where most drivers overspend. A head gasket replacement fixes the seal between head and block. A cylinder head replacement replaces the whole casting. They are not the same job.

After overheating, a specialist should inspect the head for cracks and check flatness against the engine manufacturer’s limits. Pressure testing helps establish whether the casting is usable; skimming is appropriate only where permitted and necessary. A passed pressure test alone does not establish that a head is suitable for refitting. Ask for the findings before choosing head gasket repair or cylinder head replacement.

Cylinder Head Replacement Prices by Car Make

The figures below are indicative budgets retained from this guide, not independently verified make-by-make averages. Confirm the engine code, whether one or both heads are included, parts specification, labour and VAT when requesting cylinder head replacement prices including fitting. For context, ClickMechanic reports head gasket replacement at approximately £600–£1,500+; that is gasket work, not a complete cylinder head replacement.

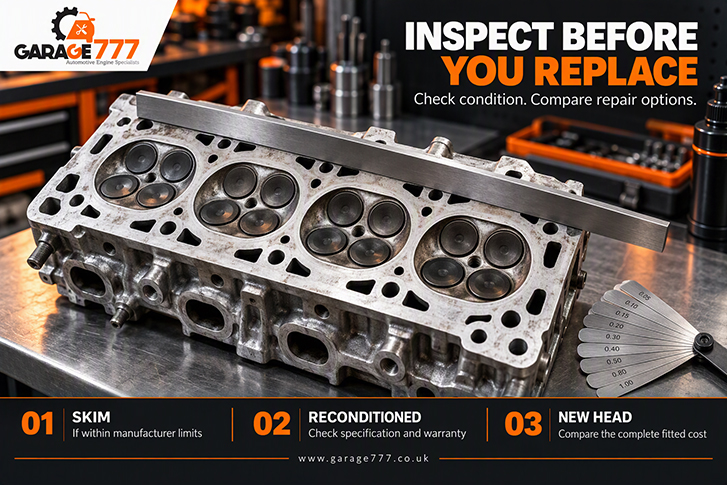

Skim, Reconditioned or New Cylinder Head: Which Option Fits?

1. Cylinder head skimming and pressure testing. A slightly warped, crack-free head may be reusable if machining remains within manufacturer limits. This guide budgets £62.50–£75 for skimming, £50–£150 for pressure testing and £150–£300 for a combined service; these are separate indicative estimates, not an additive tariff. Obtain a machine-shop quote covering the actual work required.
2. Reconditioned cylinder head prices. The guide’s parts budget is £400–£1,200 plus labour. Compare what the head includes, engine-code compatibility, testing, any exchange surcharge and written warranty terms before choosing this option for an older or higher-mileage car.
3. New cylinder head supply and fit. A new head may suit a high-value vehicle or an engine for which no suitable reconditioned casting is available. Compare the complete fitted price and specification rather than assuming a new head is required solely because the vehicle is a performance model.

What Affects Cylinder Head Replacement and Labour Costs?

• Labour hours. 10–15 hours for a four-cylinder; 15–25 for a V6 or V8. This is the largest variable.
• Machining. Skim, pressure test and any valve work.
• Parts. Gasket set, head bolts, timing components, coolant, oil.
• Related repairs. Ask whether the cambelt, water pump or thermostat needs attention and request the additional parts and labour cost separately; overlapping access may reduce duplicated work.

Why a Cheap Cylinder Head Repair Quote Can Cost More

• Skipping the pressure test. Refitting a warped or cracked head means doing the whole job twice.
• No flatness check. Refitting a head without confirming that it meets specification risks repeat failure. A skim is not automatically necessary or permitted on every head.
• Ignoring the cause. If overheating cracked the head, the cooling fault must be fixed too.
• Cheap gaskets and bolts. Head bolts are often single-use; reusing them risks a repeat failure.

What Diagnosis Is Needed Before Replacing a Cylinder Head?

A professional diagnosis should establish:

• Cooling system pressure loss and where it's going
• Compression and leak-down results
• Whether the head is flat, warped or cracked
• Whether the block is also damaged

If the block is damaged too, compare the complete head repair bill with reconditioned engine supply and fit prices. Ask the diagnosing garage which option addresses the confirmed damage and compare fitting scope and warranty exclusions before committing.

Is Cylinder Head Replacement Worth the Cost?

Compare the confirmed repair bill with the car’s market value, condition and the cost of a suitable replacement vehicle. The original guide’s 60–70% of vehicle value threshold is only a discussion point, not a universal rule. Its £400–£1,200 reconditioned-head allowance excludes labour and other required parts. Request cylinder head repair quotes including fitting before deciding whether repair, head replacement or an engine replacement offers better value.

Head Gasket and Cylinder Failure Symptoms

A failing head rarely happens without warning. These are the symptoms worth acting on early:

• Coolant loss with no visible leak underneath
• Overheating, especially if it recurs after topping up
• White smoke from the exhaust, sweet-smelling and persistent
• Mayonnaise-like sludge under the oil filler cap or on the dipstick
• Misfire or rough running, particularly from cold
• Bubbles in the coolant expansion tank while running

These symptoms can have other causes and do not confirm a cracked head or failed gasket on their own. Arrange a professional head gasket diagnosis rather than waiting for several symptoms to appear. If the engine overheats or shows serious coolant loss, stop driving as soon as it is safe and seek assistance; do not open a hot coolant system. Early inspection may limit further engine damage, but it cannot guarantee a particular repair price.

What Should a Cylinder Head Replacement Quote Include?

When you compare quotes, check that each one covers the real work:

1. Diagnosis — applicable cooling-system, compression and leak-down checks, with findings explained.
2. Strip-down — access work and head removal, including any diagnosis charge if you decline further repairs.
3. Head inspection and machining — pressure testing, flatness checks and skimming where required and permitted, or the specified replacement casting.
4. Valve work — any required seat, guide or seal work, clearly distinguished from optional work.
5. Rebuild parts — gasket set and replacement head bolts where specified by the manufacturer.
6. Refitting and fluids — labour, oil, filters, coolant and agreed cooling-system repairs.
7. Final testing and quote terms — checks, road test where appropriate, VAT, turnaround and written parts-and-labour warranty terms.

For a meaningful cylinder head repair quote comparison, ask each supplier to price the same scope. Missing inspection details or required rebuild parts can make a quote appear cheaper without covering the complete repair. Ask about exclusions and approval for additional work discovered after strip-down.

Three Ways to Reduce Cylinder Head Repair Costs

• Check whether the existing head is reusable. Ask whether inspection supports skimming within manufacturer limits rather than replacement. The guide’s £150–£300 machining allowance is indicative and excludes removal and refitting.
• Price overlapping work separately. Ask whether timing-belt, water-pump or thermostat work is due or needed and whether doing it during the repair reduces duplicated labour. Do not assume these parts or their labour are included.
• Fix the cooling system. Whatever caused the overheating must be resolved, or the new head will follow the old one.

How to Compare Cylinder Head Repair Quotes Fairly

When searching for a cylinder head repair specialist near you, compare confirmed diagnosis, engine-code compatibility, machining scope and the total fitted price—not just the advertised starting price. Check whether the quote uses your existing head, a reconditioned unit or a new casting. A lower price is useful only when the work and warranty are comparable.

What Warranty and Quote Details Should You Check?

Ask for a written cylinder head replacement quote with warranty details. It should identify the parts supplied, diagnosis, machining, labour hours, VAT and any exchange deposit. Confirm who handles a claim, whether removal and refitting labour is covered, and which overheating-related exclusions apply. Do not assume that a parts warranty also covers fitting or that every supplier offers the same protection.

Cylinder Head Replacement Cost UK: Frequently Asked Questions

How much does cylinder head replacement cost in the UK?

This guide uses £1,500–£5,000+ as an indicative full cylinder head replacement budget and £500–£2,000 for head gasket work. These are not fixed tariffs or verified national averages. Obtain cylinder head replacement quotes including labour and VAT for your exact engine and confirmed damage.

Can a warped cylinder head be repaired instead of replaced?

Sometimes. A specialist must confirm that the casting is serviceable and any skimming stays within manufacturer limits. The guide’s £150–£300 allowance for cylinder head skimming and pressure testing excludes removal, refitting and other repair work.

Can a cracked cylinder head be repaired?

Repairability depends on the casting material, crack location and extent of damage. Some non-critical cast-iron cracks may be repairable; damage in combustion chambers or coolant passages may require replacement. Ask a specialist to assess the casting before comparing cracked cylinder head replacement quotes.

How long does cylinder head replacement take?

Allow an indicative 2–5 days, subject to diagnosis, machining and parts availability. The guide estimates 10–15 labour hours for a four-cylinder and 15–25 for a V6 or V8; actual times vary by engine and repair scope. Ask the fitting garage for a written turnaround estimate.

Should I compare head repair and replacement engine quotes?

Compare head gasket repair quotes and cylinder head supply and fit prices for the diagnosed fault. If the block or other major engine components are damaged, also request replacement engine quotes. Compare complete fitted costs, condition, compatibility and written warranty terms rather than treating the repairs as interchangeable.

The practical next step is straightforward: confirm the diagnosis, request equivalent itemised quotes and check the repair and warranty scope in writing.

Choose the repair supported by inspection, not simply the cheapest starting price. Whether you drive a Ford, BMW or Land Rover, a suitable tested head, correct assembly and resolution of the underlying overheating fault matter more than a headline discount.

Compare Cylinder Head and Head Gasket Repair Quotes

Provide your registration or engine code, mileage, postcode and any diagnostic report to request cylinder head replacement quotes or head gasket repair quotes. Ask suppliers to confirm availability, total fitting cost, VAT, machining, turnaround and warranty terms. Compare the written scope before booking; a quote request is not a confirmed diagnosis.
